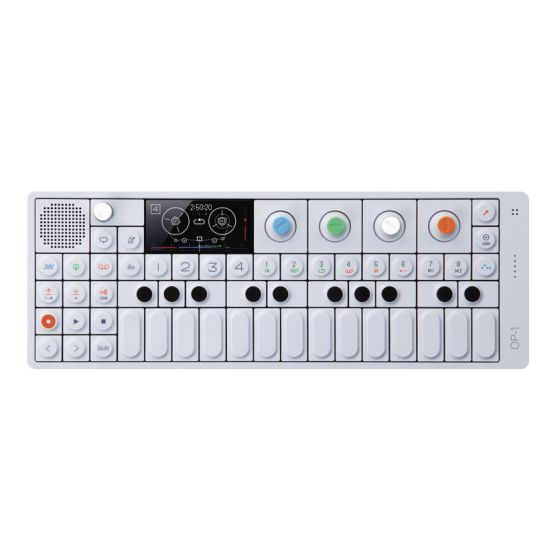

Teenage Engineering OP-1

Technische Daten:

CPU
400 MHz Processor Core
(800 MMACSS performance)
64 MB Low-Power SDRAM (12ns)
512 MB Nand Flash storage
24-bit 96kHz ADC/DAC
Battery
Li-Ion 1800 mAh
16 hours active Battery Life
2 Years stand-by time
Charge via USB port
I/O
USB 2.0 high speed (OTG)
3.5 mm Line Input, Output
Built-in microphone
High output mini speaker 8 Ohm 1 Watt
3-axis accelerometer (G-force) sensor
Worldwide FM band support (64-108 MHz)
Display
Amoled display running in 60 fps
320 x 160 pixel resolution
Color Depth: 16.7 M
Contrast: 10000:1 (good for outdoor use!)
Viewing Angle: 170°
Life Time: 30,000 hrs
Mechanical
Low profile keyboard module
Scissor-switch ultra low profile design
Expected lifespan of 10 million keystrokes per key
Encoders
Industrial Grade Incremental Encoders
Rotational life: Up to 1,000,000 revolutions
Excellent indexing feel (remains consistent over life)
Zinc diecast and fiber enforced high performance plastic
Used in Avionics Operating temperature range: -40 to +85°C2.8
Body
Advanced CNC:d one-piece Aluminum design.
2 X M6 Mounting holes for accessories.
2 X Cuts for strap accessory.
Color
Light grey powder coated body and EDM textured keyboard
Dimensions
L 282 mm, H 102 mm, D 13.5 mm
Packaging
The OP-1 comes shipped in a reusable environmental friendly package made out of Paperfoam material.
Motion Sensor
3 Axis Motion sensor (G-Force)
Assignable to any synth, envelope, effect parameter or to pitch.
