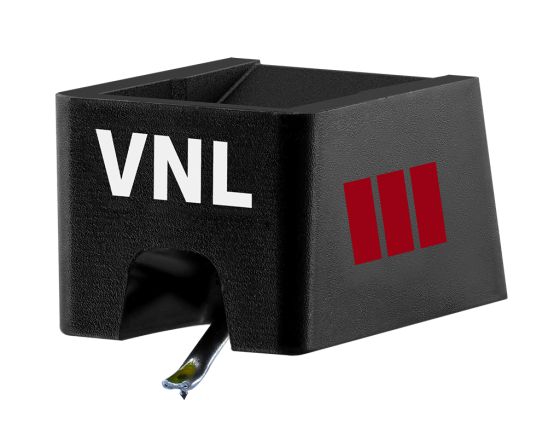

Ortofon VNL III Ersatznadel
SKU
244691
Ersatznadel für VNL System.
Technische Daten:
- Output voltage at 1,000 Hz, 5 cm/sec.: 6 mV
- Channel separation 1 kHz: 20 dB
- Frequency Response: 20 Hz – 20 kHz -2/+4 dB
- Tracking ability at 315 Hz at recommended tracking force: 90 μm
- Compliance, dynamic lateral: 14 μm/mN
- Stylus type: Spherical R 18 μm
- Tracking force range: 3 – 5 g
- Tracking force recommended: 4 g
- Internal impedance, DC resistance: 700 Ohm
- Internal inductance: 450 mH
- Recommended load resistance: 47 kOhm
- Recommended load capacitance: 200 – 600 pF
